UNIDOS webline

Reference Class Electrometer

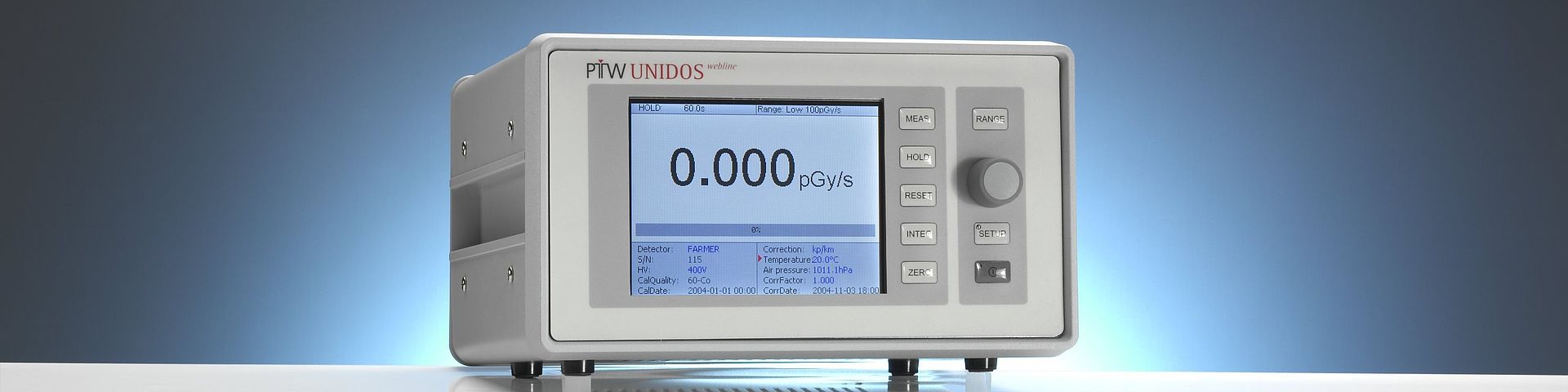

UNIDOSwebline is a high-precision, secondary standard reference class dosemeter combined with modern network features.

This unique dosemeter offers high quality, reliability and an excellent adaptation to the measuring tasks. The Ethernet interface based on the TCP/IP protocol makes it possible to integrate the UNIDOSwebline in a LAN for remote access and e-mail capability. Its large, user-configurable TFT display guarantees visibility from wide angles. UNIDOSwebline features an easy to use menu prompting operation with help texts. Important settings can be password protected (different levels). The operation language is selectable. A comprehensive statistic and data logging function is implemented. Up to 100 measuring values are stored in a list. The data can be reviewed and exported. Mean value and relative standard deviation are displayed on the measuring screen. Chamber data are stored in a comprehensive chamber library. Air density is corrected by keying in air pressure and temperature or by means of radioactive check devices. The check device data are stored in a database. An internal clock calculates the isotope radioactivity decay. The device features both mains and battery operation.

UNIDOSwebline surpasses the requirements for reference class dosemeters according to IEC 60731, the IPEM secondary standard dosemeter guidelines, IEC 61674 for diagnostic radiology and IEC 60846 for health physics.
