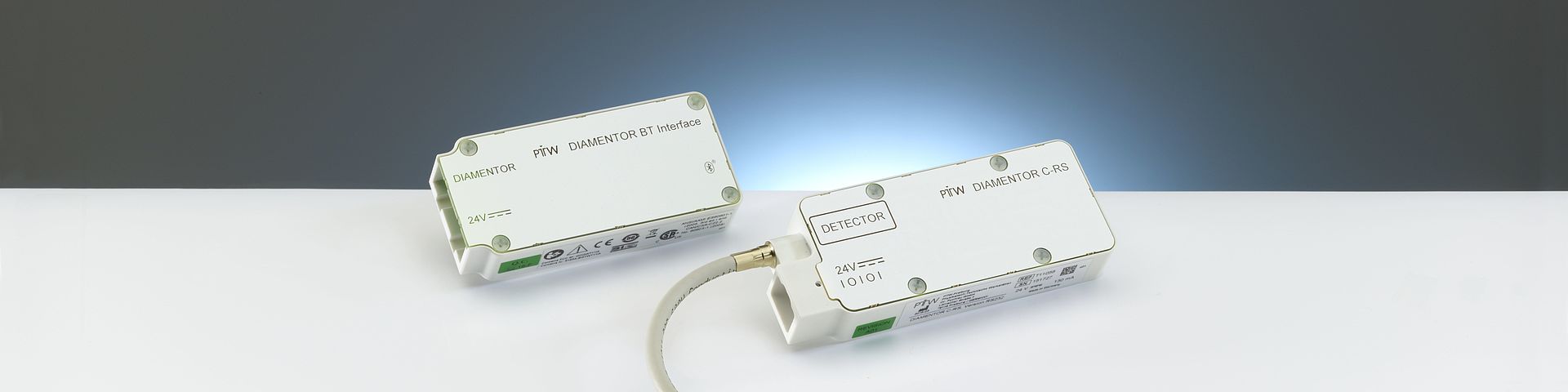

DIAMENTOR® C-RS

Miniature single channel dose area product meter

The DIAMENTOR C-RS is a flexible dose area product meter. The highly integrated and miniaturized electronics in a small and space-saving housing, can be combined with any PTW dose area product ionization chamber (CARD or rectangular chamber, connecting system A). The DIAMENTOR C-RS can be fixed arbitrary, but most likely under the housing of the X-ray modality. This allows maximum flexibility for the usage with any radiographic and fluoroscopic diagnostic X-ray modality.

  • Housing with electronics for use in combination with a DIAMENTOR chamber
  • Measures DAP, DAP rate, exposure time
  • Flexible positioning of the electronics
  • Communication via RS232 or RS485
  • Wireless communication and data transfer in combination with the DIAMENTOR BT Interface
  • Energy response: 5% … ± 8 % for tube voltage
    in the range (40 … 150) kV
  • Automatic air density correction
  • Optional operation via Bluetooth®
  • Different selectable measuring quantities and units
  • Hardware safety performance test

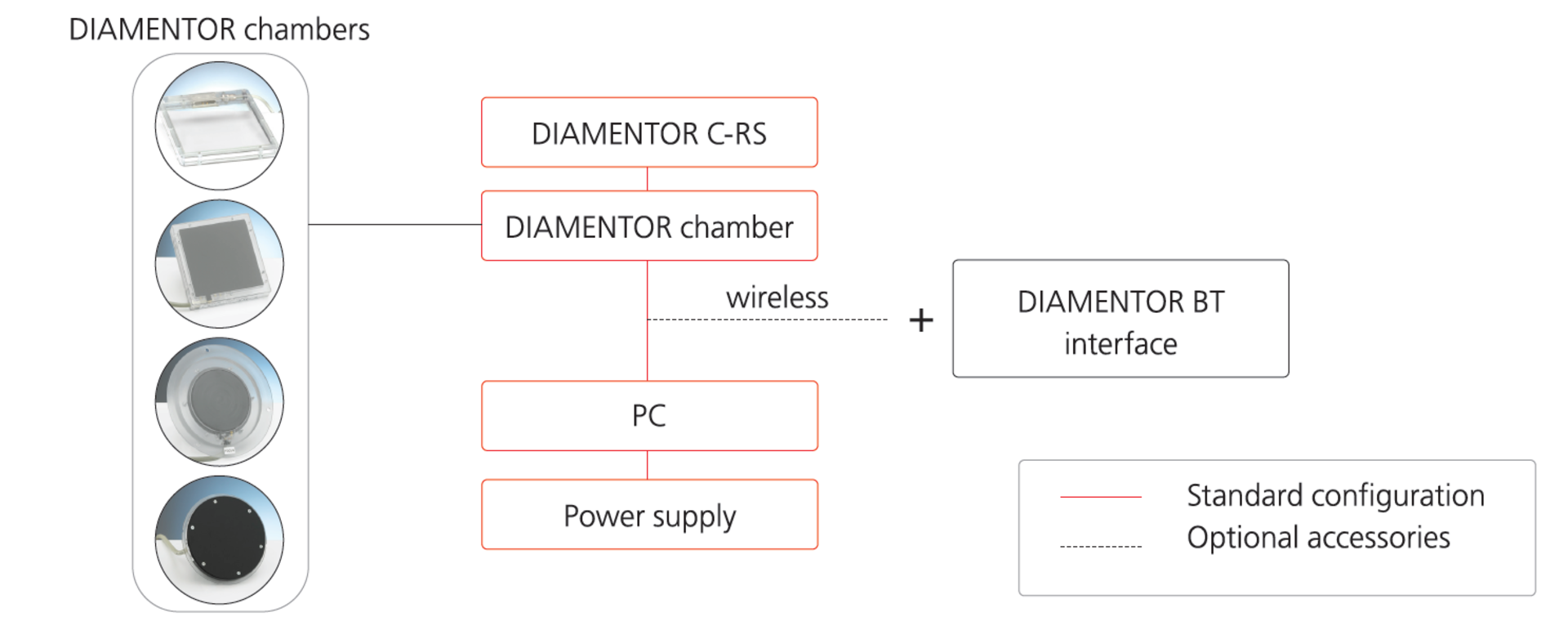

Choose the appropriate DIAMENTOR system combination for your application:

DIAMENTOR chambers + DIAMENTOR BT interface
Available DIAMENTOR chambers
DIAMENTOR C-RS
DIAMENTOR BT interface
Choose your combination
Available DIAMENTOR chambers
  • TA34028, size B, 141 mm x 141 mm
  • TA34054, 85 mm x 85 mm
  • TA34002, circular, Ø 73 mm
  • TA34037, circular, Ø 72 mm
DIAMENTOR C-RS
DIAMENTOR C-RS

The DIAMENTOR C-RS is a flexible dose area product meter. The highly integrated and miniaturized electronics in a small and space-saving housing, can be combined with any PTW dose area product ionization chamber (CARD or rectangular chamber, connecting system A). The DIAMENTOR C-RS can be fixed arbitrary, but most likely under the housing of the X-ray modality. This allows maximum flexibility for the usage with any radiographic and fluoroscopic diagnostic X-ray modality.

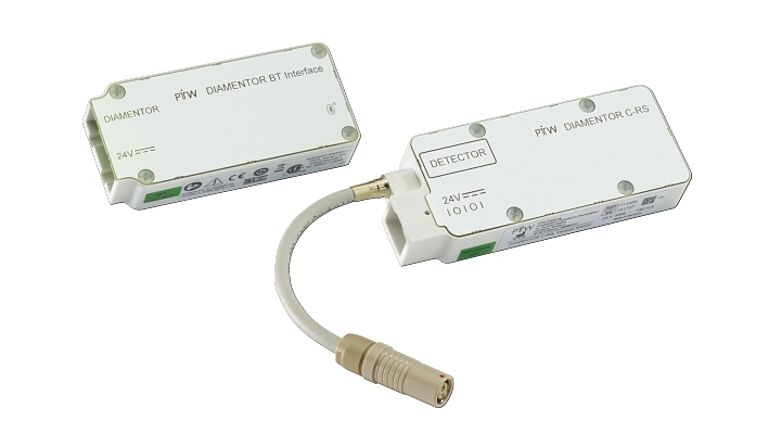

DIAMENTOR BT interface

For wireless data transfer via Bluetooth® the DIAMENTOR BT interface can be connected to the DIAMENTOR C-RS. Thus, the DIAMENTOR BT interface replaces the cable between the DIAMENTOR C-RS and the PC and enables convenient and fast installation due to the removal of extension cables.

Choose your combination
  • RS232 or RS485 interface
  • Cable based or wireless data transfer
  • Control via PC and/or a display unit (work in progress)
Measuring units: dose area product (DAP), DAP rate, exposure time
Power supply: (12 ... 32) V DC
Dimensions: (45 x 18 x 100) mm³
Weight: approx. 122 g

Measuring ranges

DAP: (0.1 ... 106) μGym²
Digital resolution: 0.01 μGym²
DAP rate: (0.1 ... 15 000) μGym²/s
Digital resolution: 0.01 μGym²/s
Exposure time: 1 s ... 60 000 s
Digital resolution: 0.1 s

Ranges of use

DAP rate: (0.005 ... 15 000) μGym²/s
Tube voltage: (40 ... 150) kV
Temperature: (10 ... 40) °C
Atmospheric pressure: (700 ... 1060) hPa
