Spherical Chamber 1 Liter 32002

Spherical ionization chamber for radiation protection measurement

Vented sensitive volume of 1 liter
Suitable for survey meter calibration and low level measurements
Superior energy response, reproducibility, directional dependence and long-term stability

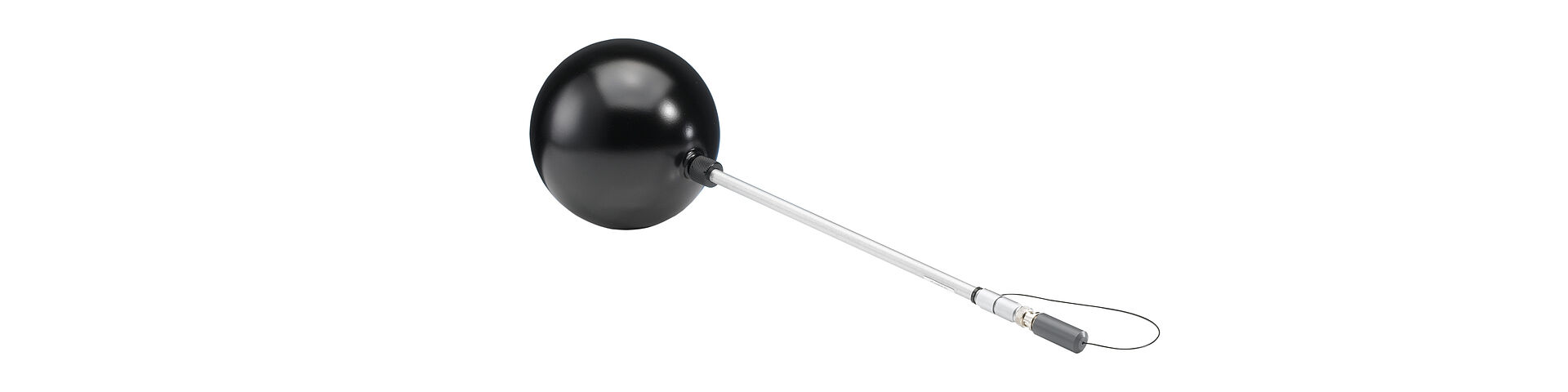

The spherical chamber is designed for the measurement of ionizing radiation in radiation protection.

Superior features make the chamber suitable as standard chamber for calibration purposes. It fulfills the requirement for excellent reproducibility and long-term stability of the sensitive volume.

The spherical construction ensures a nearly uniform response to radiation from every direction.

The energy response is very flat. This is achieved by the thin layer of aluminum on the inner wall surface, which provides for an increased photoelectric yield to compensate for the absorption of soft X-rays.

The outer chamber diameter is 140 mm

Type of product	vented spherical
	ionization chamber
Application	radiation protection measurement
Measuring quantities	air kerma, photon equivalent dose
Design	not waterproof, vented
Nominal sensitive volume	1 l
Reference point	chamber center
Nominal response	40 μC/Gy
Chamber voltage	400 V nominal, ± 500 V maximal
Energy response	≤ ± 4 %
Leakage current	≤ ± 10 fA

Materials and measures

Wall of sensitive volume	3 mm POM (polyoxymethylene),
	0.02 mm graphite
	0.22 mm lacquer
Total wall area density	453 mg/cm²
Central electrode	graphite coated polystyrene,
	diameter 50 mm
Outer dimensions	diameter 140 mm

Ion collection efficiency at nominal voltage

Ion collection time	37 ms
Max. dose rate for
≥ 90.0 % saturation	420 mGy/h
Max. dose per pulse for
≥ 99.0 % saturation	3.1 μGy

Ranges of use

Chamber voltage	± (300 ... 500) V
Radiation quality	25 keV ... 50 MeV
Temperature	(10 ... 40) °C
	(50 ... 104) °F
Humidity	(10 ... 80) %, max 20 g/m³
Air pressure	(700 ... 1060) hPa

Options

T48010 Radioactive check device 90Sr

T48001 Chamber holding device for check device
