QUICKCHECK webline

Beam on, off it goes.

  • Suitable for all linear accelerators and radiation fields, including flattening filter free (FFF) radiation

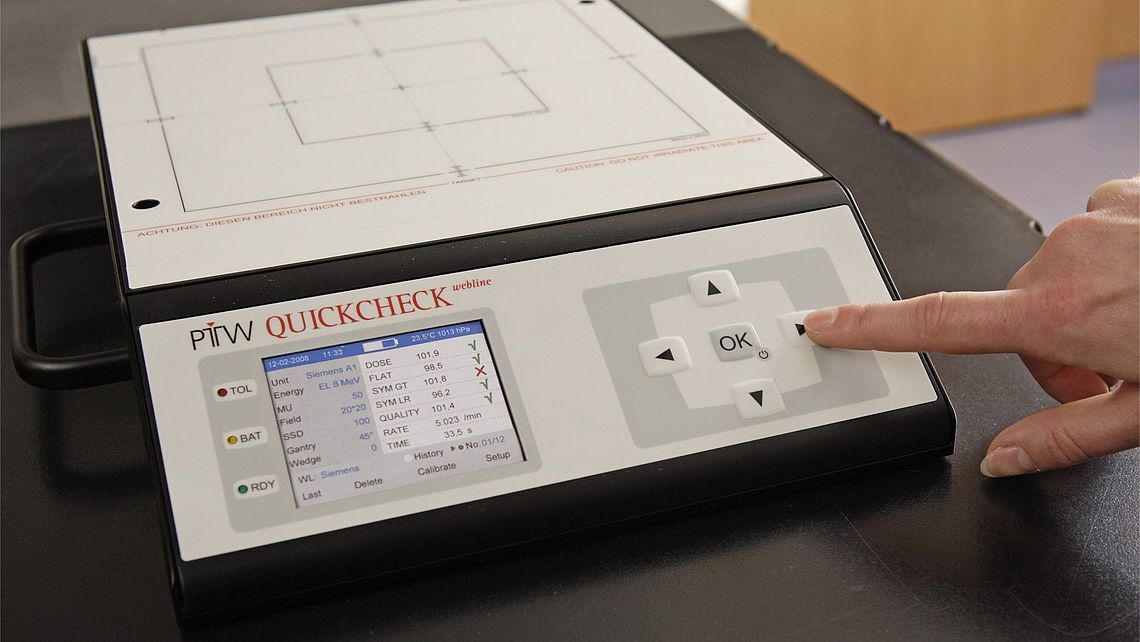

  • Standalone, truly wireless operation

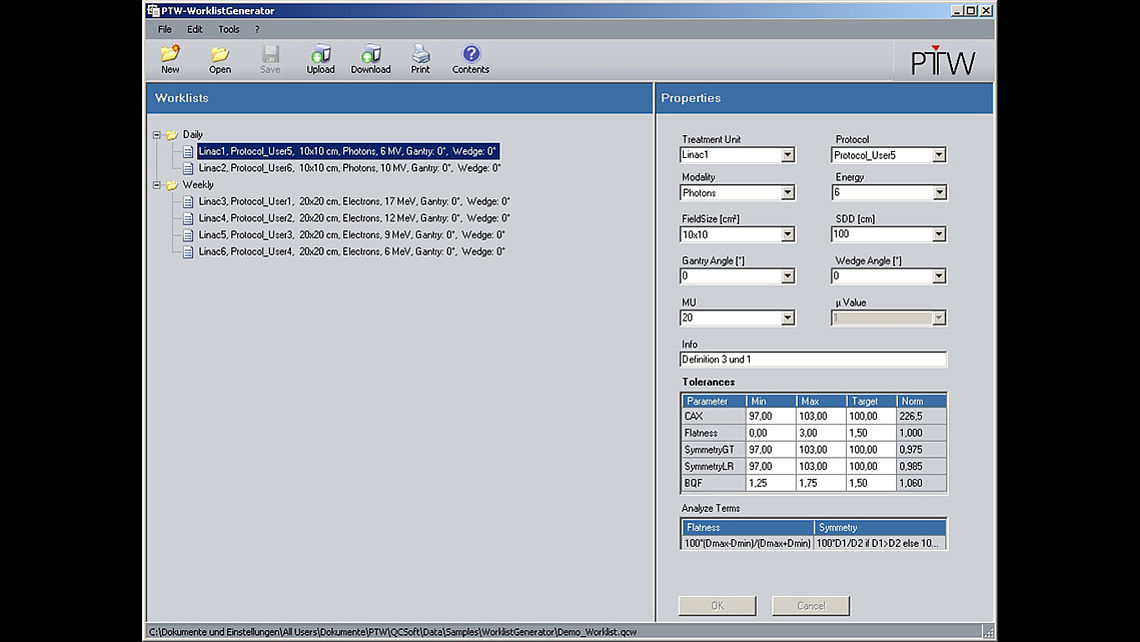

  • Fully automatic workflow using predefined worklists
  • Integrated auto functions (start, stop, stand-by, shutdown, calendar)

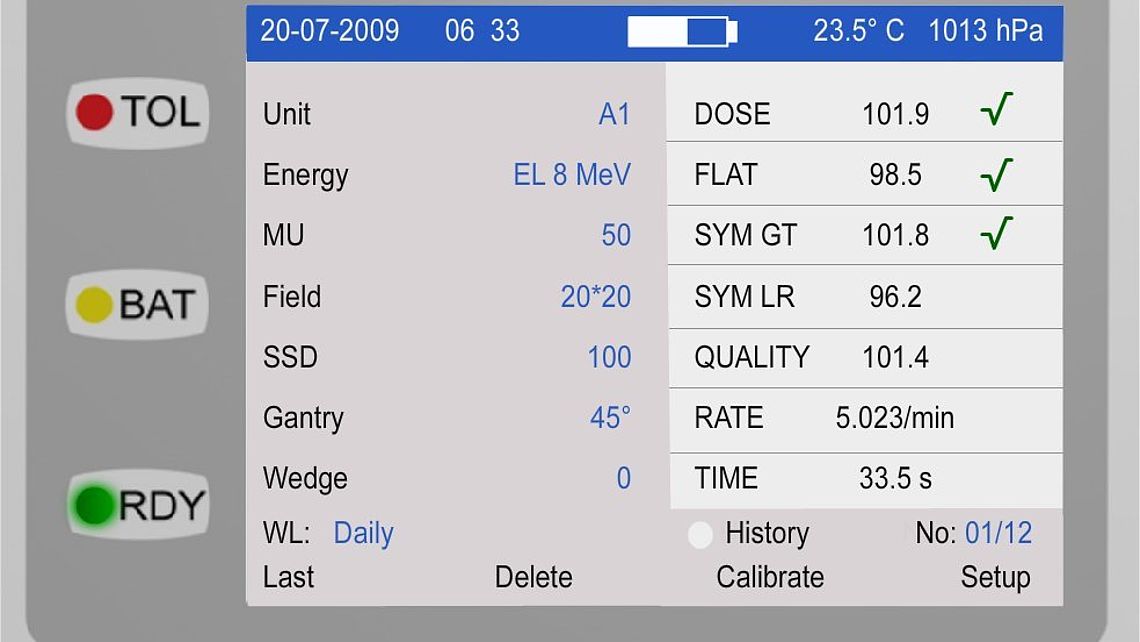

  • Immediate display of measurement results via large, full-color display and LED status indicators
  • Gold standard ionization chamber technology
  • Password-protected access

Supported QA Procedures

  • X-ray output constancy
  • Electron output constancy
  • Photon beam profile constancy
  • Electron beam profile constancy
  • Electron beam energy constancy


Application Highlights

  • Constancy check of all essential beam parameters in one go and at any gantry angle
  • Built-in beam energy check
  • Field sizes 10 x 10 and 20 x 20 cm²
  • Automatic air density correction
  • All major dosimetry protocols included
  • Vendor-specific gantry mounts for rotational testing optionally available

Faster. Easier. Safer.


  • Rapid implementation
    Quick installation procedures and short training times. QUICKCHECKwebline® is a cable-free, truly wireless system with all required essentials built right in for easy operation and convenience. After an initial setup, it is ready for everyday use. Setup once, usage day after day.
  • Saves time on routine tasks
    With its fully automatic workflow and its standalone, PC-free operation, QUICKCHECKwebline® makes it faster and easier, even for occasional users, to complete their routine tasks. No extra time is required to set up the system. Every "morning warm-up" team will love it.
  • Supports clinical workflow
    Measurement, retrieval and analysis at the users’ convenience. As a standalone device, QUICKCHECKwebline® stores all data collected in its internal memory for later review and documentation purposes. Reports can be saved as a PDF file for easy archiving and distribution within your clinical network.
  • Makes routine tasks safer
    Its automated workflow, integrated password protection and self-diagnostic tools help to eliminate operator errors as they may occur in the "heat of battle". QUICKCHECKwebline® simply gives the peace of mind that all tests are thoroughly performed - just as required!
  • Service contracts for QUICKCHECKwebline®: Bronze, Silver, Gold

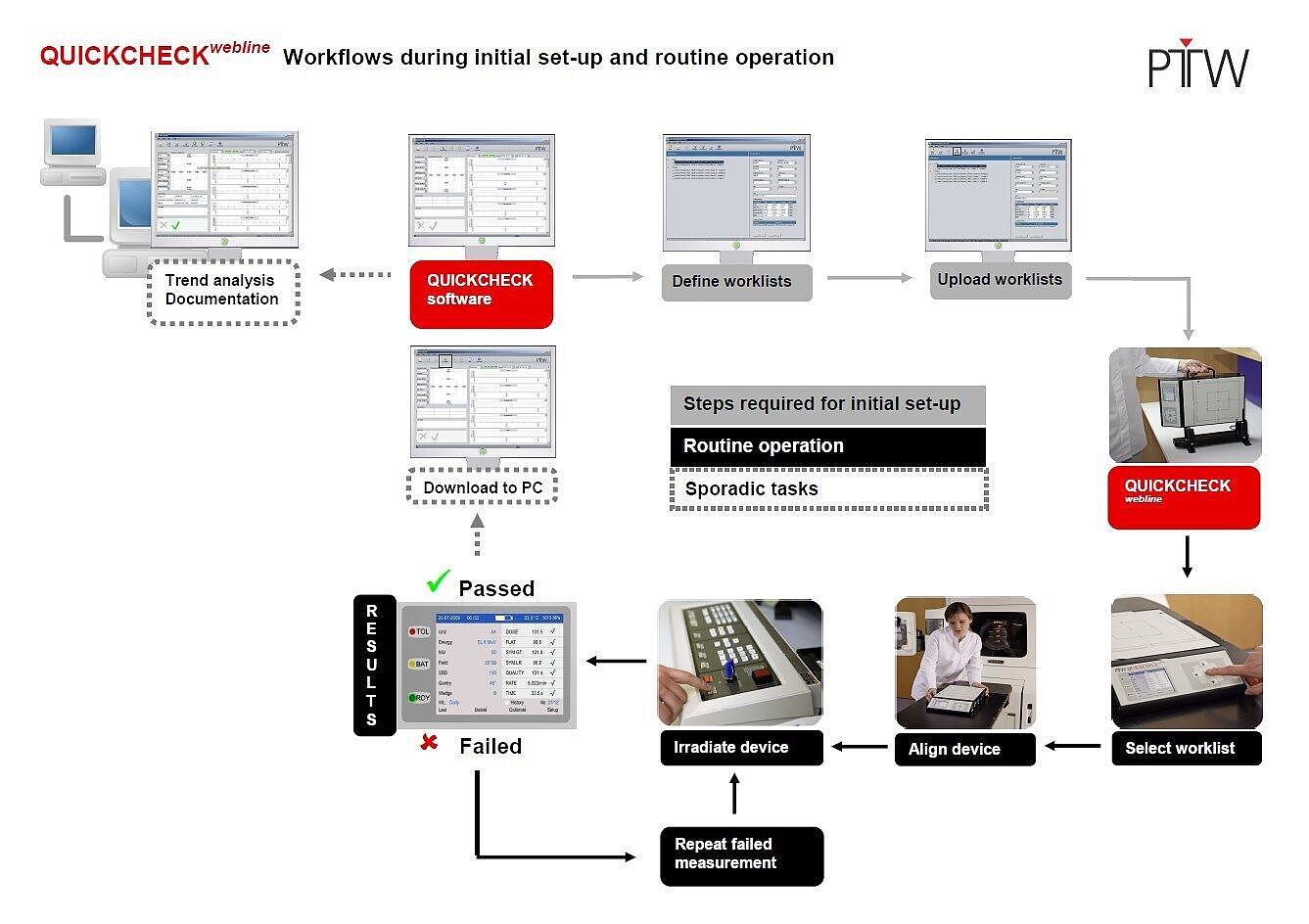

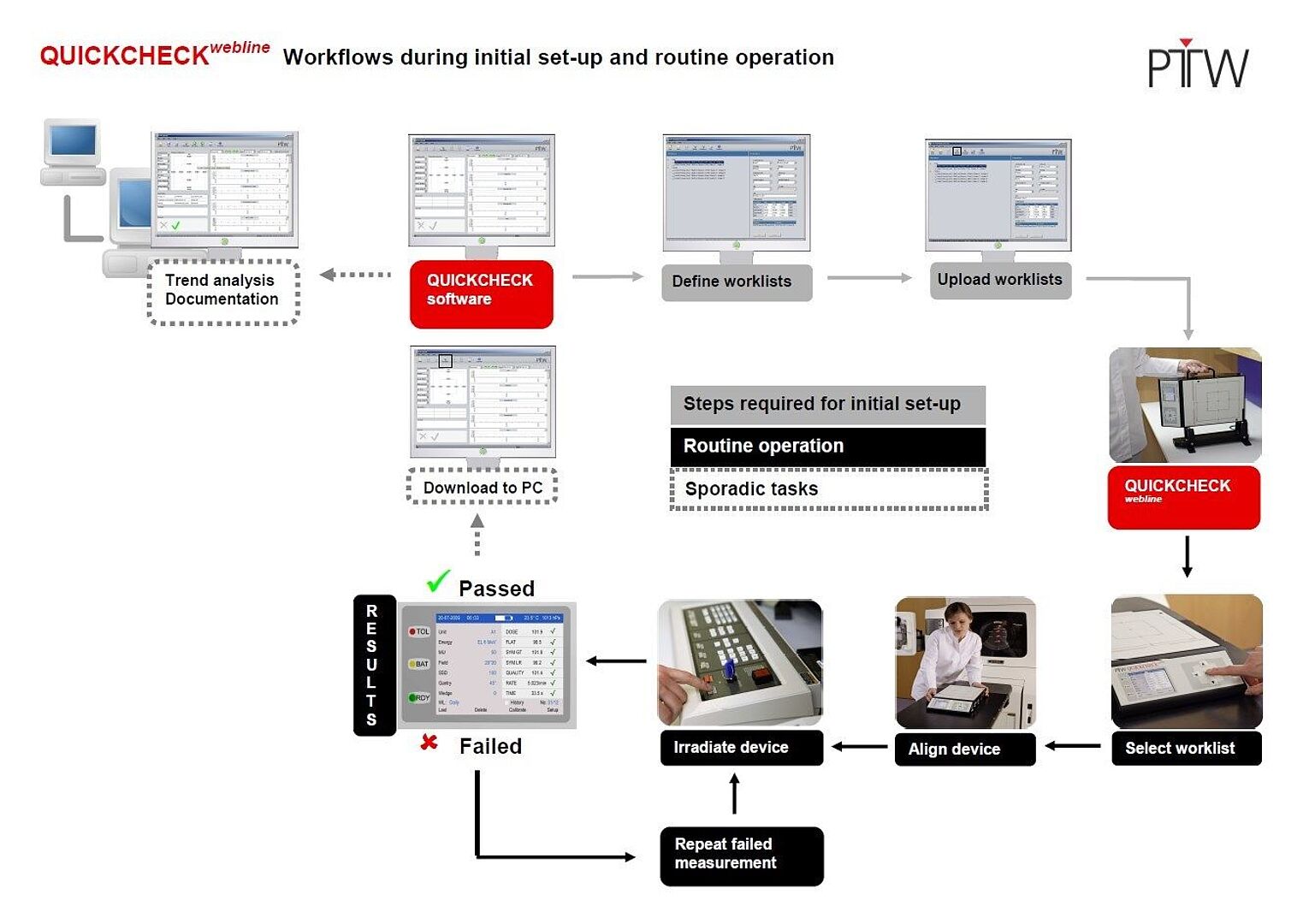

Workflows

  • QUICKCHECKwebline® standalone daily linear accelerator check device with enhanced network capability
  • External power supply and connection cables
  • Battery packs

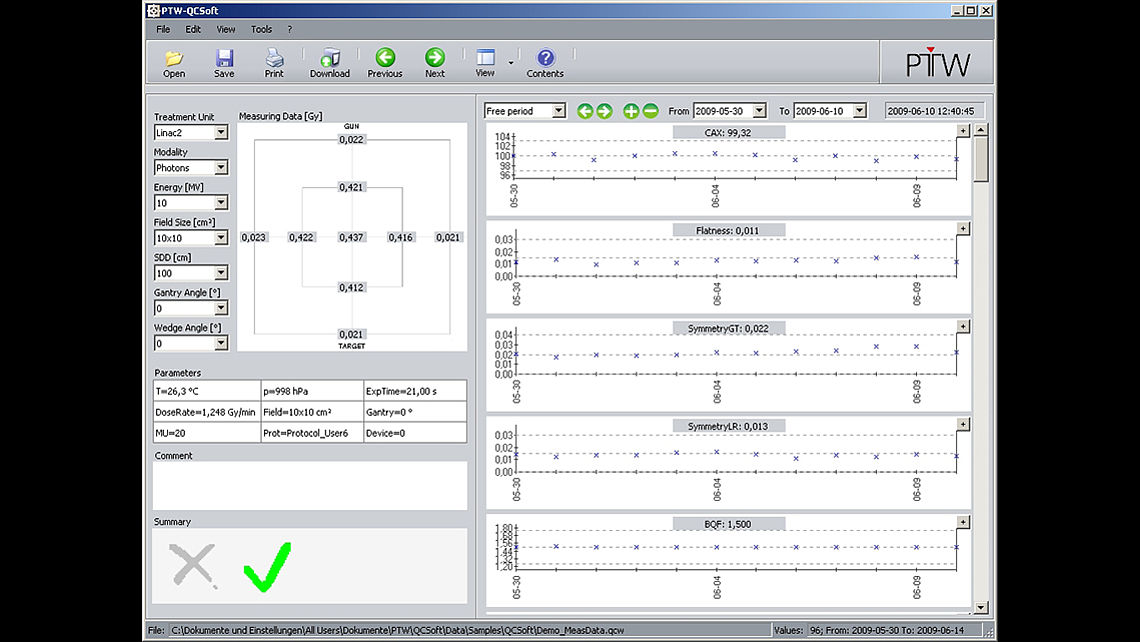

  • QUICKCHECK software with trend analysis

Track-it is a web application for managing QA reports and data in radiotherapy and radiology institutions. Data from measurement devices and results from tests carried out manually are summarized in reports and displayed in trend diagrams. A dashboard and logbooks additionally help in monitoring the status of QA-related work.

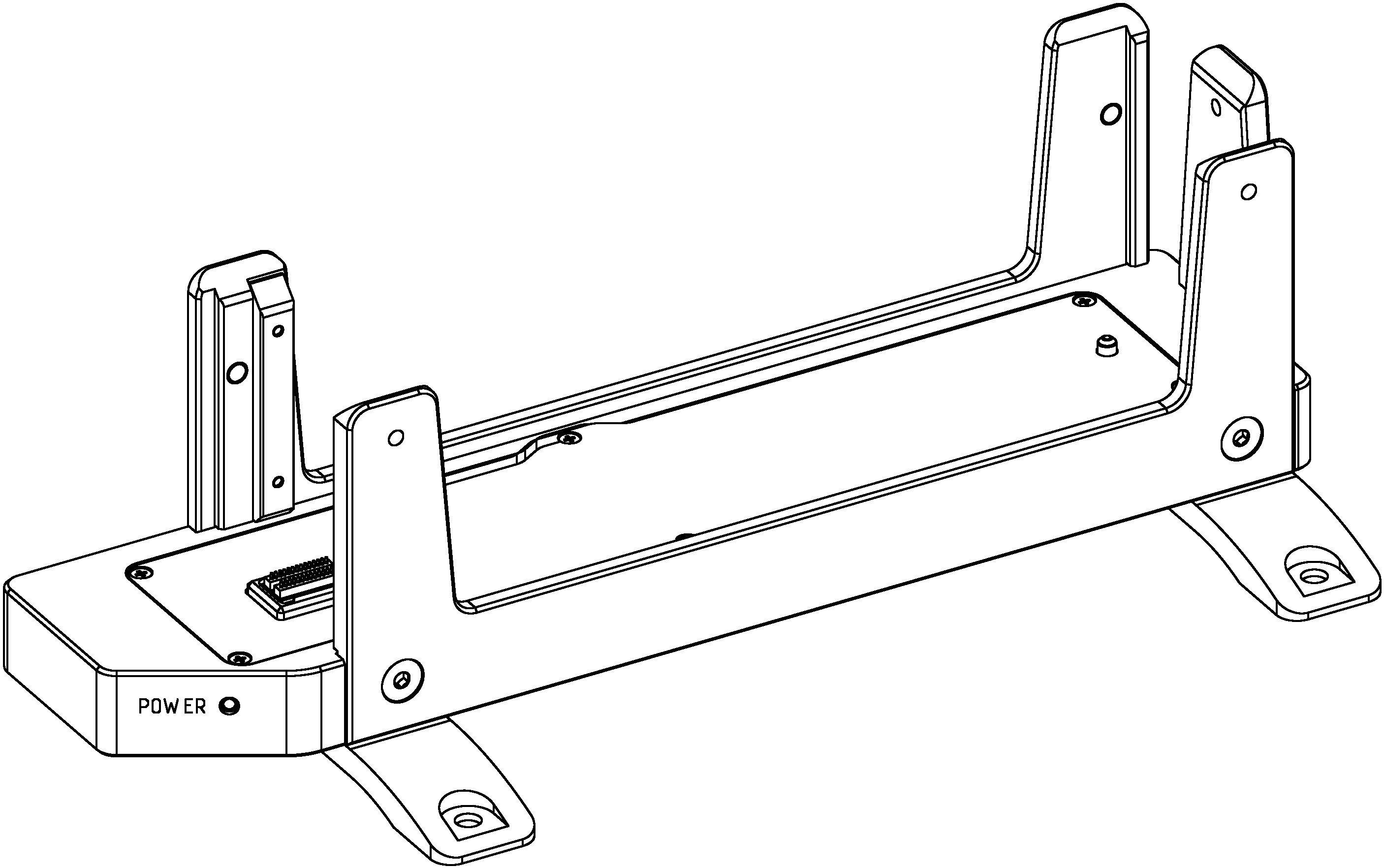

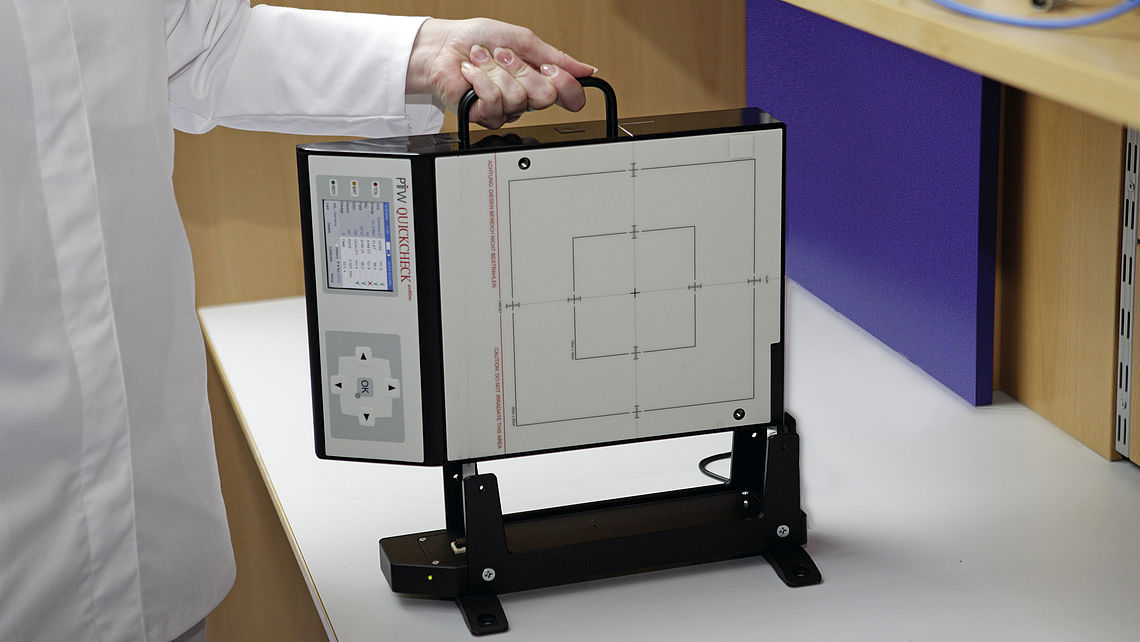

  • Floor/wall mountable docking station
    Functionally designed docking station for convenient storage and recharging of your QUICKCHECKwebline®

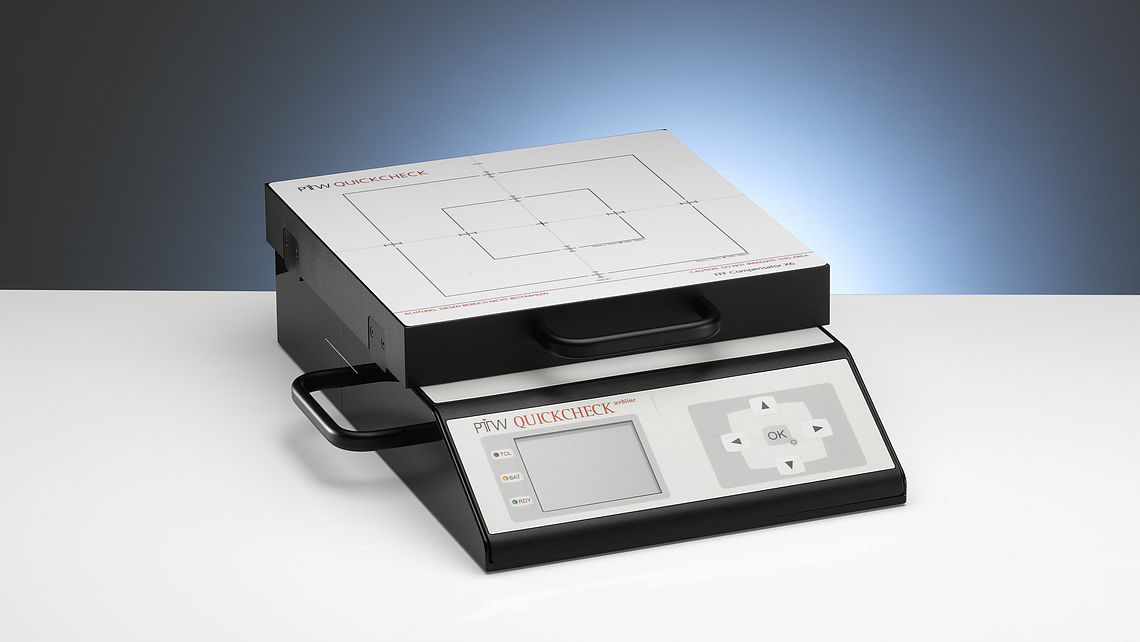

  • FFF compensators
    For constancy tests of flattening filter free (FFF) radiation fields. By using a QUICKCHECK FFF compensator, all QUICKCHECK measurements can be performed as usual. The compensator can easily be used by placing it on top of the QUICKCHECKwebline® device. FFF compensators are available for X6 and X10 FFF radiation fields.

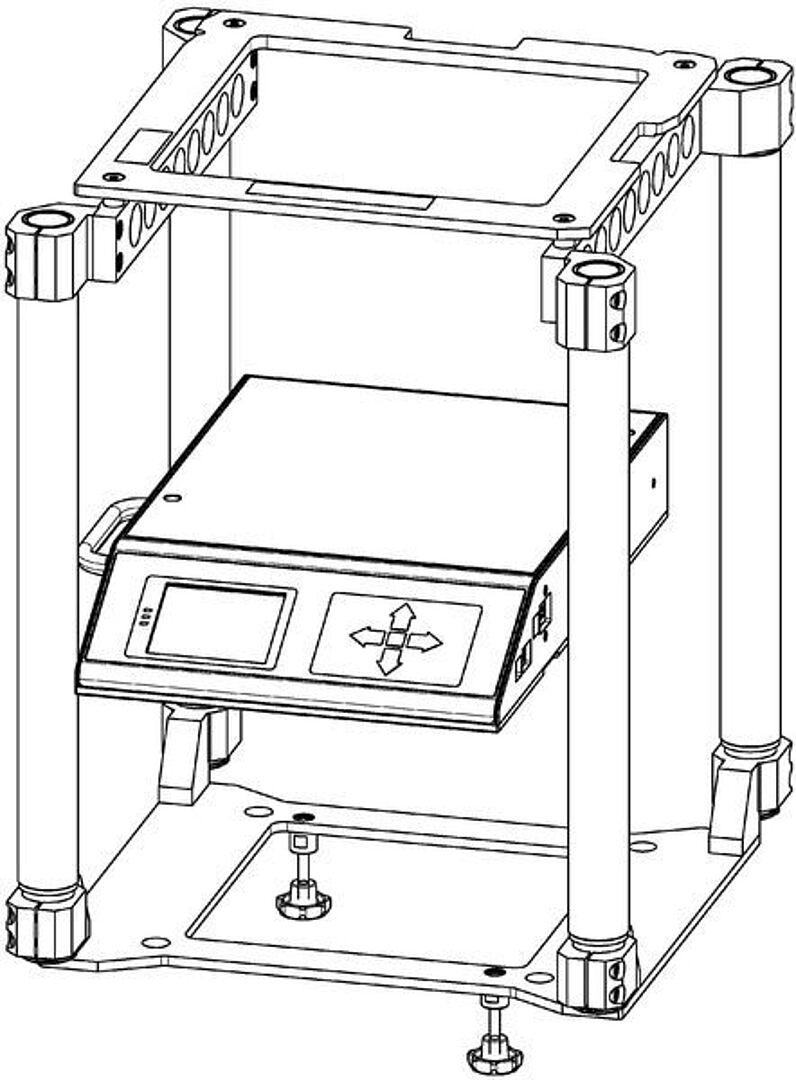

  • QUICKCHECKwebline® gantry mounts
    Linear accelerator type-specific gantry mounts for constancy checks at various gantry angles
Device type Constancy test device
Constancy tests supported central axis dose, radiation quality, symmetry, flatness, wedge angle (fixed and dynamic)
Dosimetry protocols AAPM TG-45, AFSSAPS No 93
IEC 60976, Elekta, Siemens, Varian
Measured quantities dose, dose rate, exposure time, temperature, air pressure
Detector type Vented ionization chambers, air density compensated
Number of detectors 13
Response 3.4 nC/Gy (typical)
Display TFT colour display 70 mm x 53 mm
Interfaces LAN (TCP/IP), USB, RS232
Internal memory 10,000 measurements before download is required
Power supply 4 rechargeable batteries AA (NiMH),
External 7.5 VDC power supply (100 ... 240 V, 400 mA) for battery charging
and standby operation
Outer dimensions 380 mm x 254 mm x 67 mm
Weight 5.5 kg
Field sizes (10 x 10) cm², (20 x 20) cm²
Nominal range of dose rate (0.5 ... 10) Gy/min
(1 ... 25) Gy/min with FFF Compensator
Nominal energy range (4 ... 25) MV Photons,
(4 ...10) MV Photons with FFF Compensator
(4 ... 25) MeV Electrons,
60Co
Temperature range (10 ... 40) °C, (50 ... 95) °F
Humidity range (10 ... 80) %, max 20 g/m³
Air pressure range (540 ... 1060) hPa
Operating systems - Windows 7 Professional x32/x64
- Windows 8 / 8.1 Pro x32/x64
- Windows 10 Pro x32/x64
with recent Service Packs and Updates
For a complete list of all operating systems approved for this software, please refer to the Release Notes on the installation CD
Processor min. Pentium IV processor, 2 GHz or compatible processor
RAM 2 GB RAM recommended 4 GB
Hard disk min. 100 MB of free space for QUICKCHECK and min. 2 GB of free space for .NET Framework 4.5.1
Graphics SXGA 1280 x 1024 or higher resolution default font size enabled
Software PDF viewer
