OCTAVIUS Detector 1500XDR

Patient Plan Verification and Quality Assurance for Proton and Heavy Ion Beams

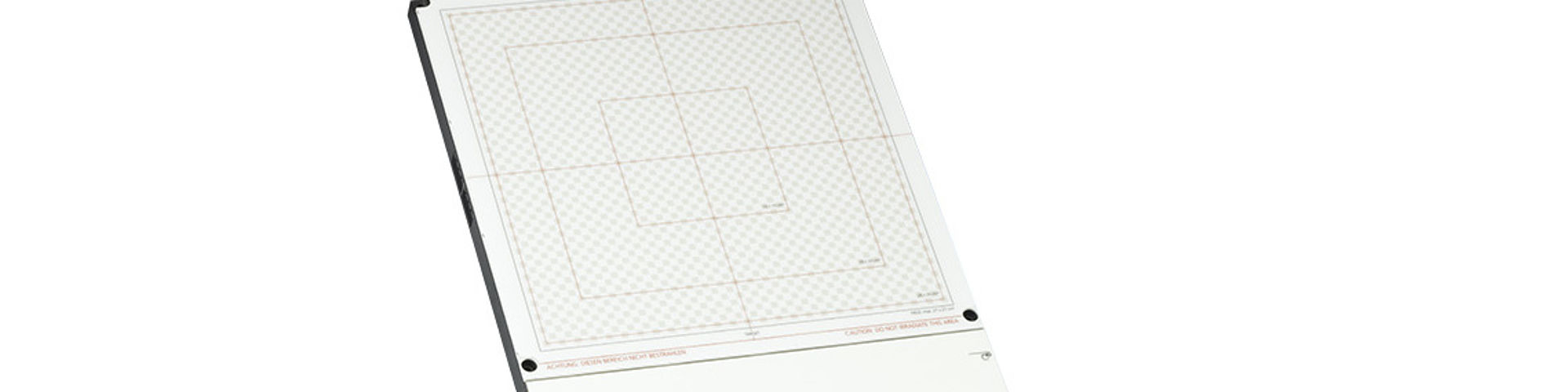

The OCTAVIUS Detector 1500XDR is a new concept of an ion chamber matrix for patient plan verification and quality control radiation therapy with protons or heavy ions. Utilizing ion chambers avoids radiation defects, the major drawback of solid-state detectors. The vented plane-parallel ion chambers are 4.4 mm x 4.4 mm x 3 mm in size and the center-to-center spacing is 7.1 mm. In total there are located 1405 ion chambers in a chessboard matrix, providing a maximum field size of 27 x 27 cm². The square chamber design offers unique 50% field coverage. Read out cycles of 100 ms provide the basis for real-time analysis of beam profiles.

Key Features

  • Suitable for patient plan verification and machine QA of proton and heavy ion beams
  • Outstanding detector and matrix design: 1405 vented cubic ion chambers, uniformly arranged on a 27 x 27 cm² matrix
  • Detector spacing 7.1 mm center-to-center (diagonals)
  • Pioneering ionization chamber array, flat and lightweight (6 kg)
  • No ageing effects by utilizing gold Standard ionization chamber technology
  • Absolute dose calibration in 60Co beam
  • Supported by the measurement and evaluation software programs VeriSoft, MultiCheck and BeamAdjust
Detector type: Plane-parallel vented ionization chambers
Number of detectors: 1405
Detector size: 4.4 mm x 4.4 mm x 3 mm (0.06 cm³)
Detector spacing: 7.1 mm center-to-center
Max. field size: 27 x 27 cm²
Max. measurement points: 2916 (four merged measurements)
Reproducibility: ≤± 0.5%
Dead time: zero
Repetition rate: 100 ms
Measured quantities: absorbed dose to water (Gy), absorbed dose rate to water (Gy/min)
Resolution: Dose: 0.1 mGy, Dose rate: 0.1 mGy/min
Measurement range: 0.25 ... 800 Gy/min
Reference point: 7.5 mm below the surface of the array
Housing material: PS, GRP (frame)
Dimensions: 467mm x 300mm x 22mm (H x W x D)
Weight: 6 kg
Power supply: (100 ... 240) VAC; (50 ... 60) Hz
PC connection: Ethernet
